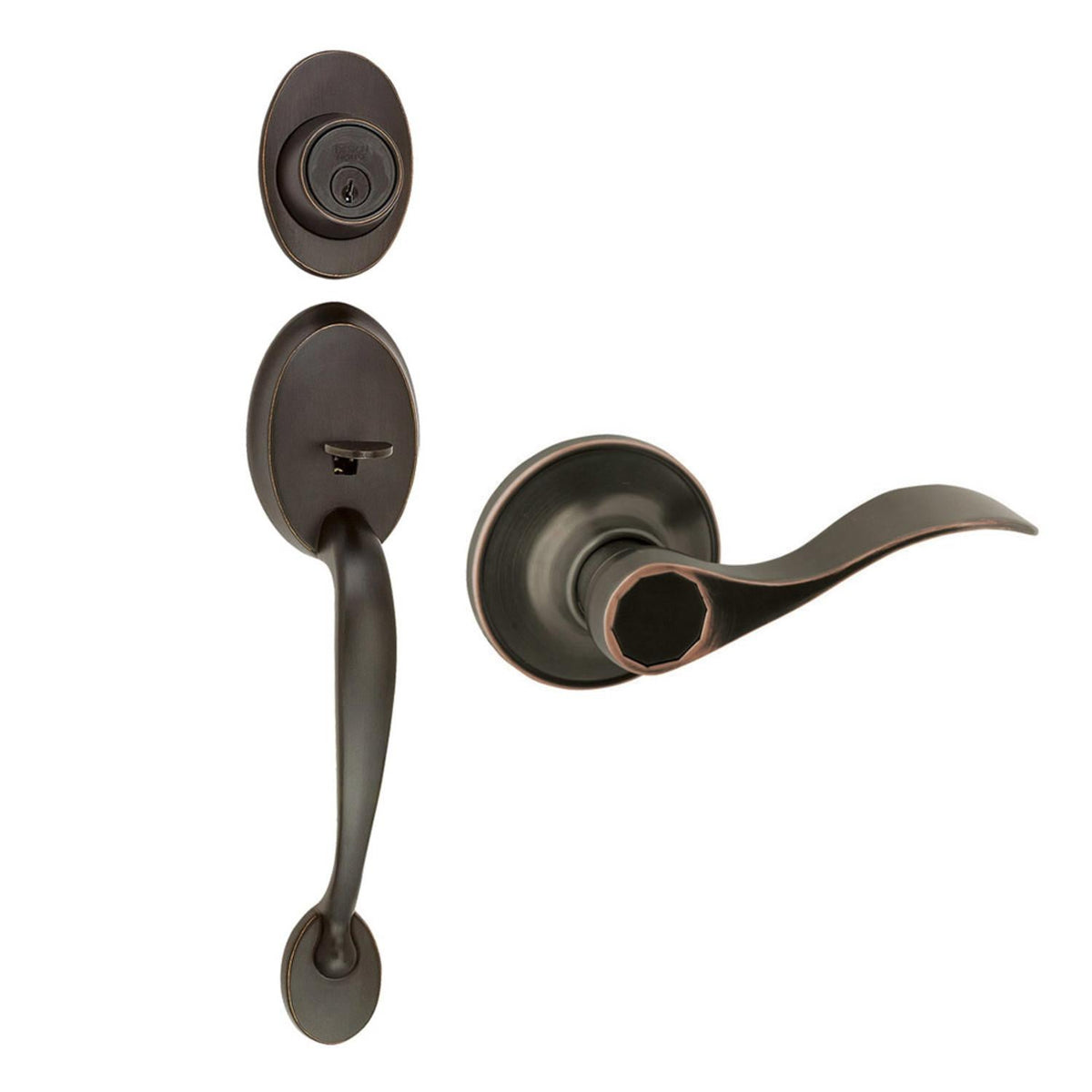

Design House Coventry Bronze Door Handle set with Springdale Lever and Deadbolt

Design House Coventry Bronze Door Handle set with Springdale Lever and Deadbolt

Design House

SKU: 20512968
  • $121.99
    Unit price per



The Design House 700567 Coventry 2-Way Latch Entry Door Handle Set accepts a key on one side of the lock but is operated by a handle on the other side. Finished in oil-rubbed bronze and designed for left or right-hand doors, this handle and keyway fit the two most common backsets in the U.S. (backset is the distance from the edge of the door to the center of the borehole), which are 2-3/4 inches and 2-3/8 inches. The 1/2 inches latch bolt is plated in nickel and does not budge once in place. Use this handle on standard 1-3/8 inches and 1-3/4 inches thick doors. This product has a 1 inch by 2-1/4 inches radius corner faceplate and 5-pin security. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter.

Finished in oil rubbed bronze and designed for left or right hand doors
Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
Entry Lock; operated by a key on the exterior and is by a turn-button knob on the interior.
