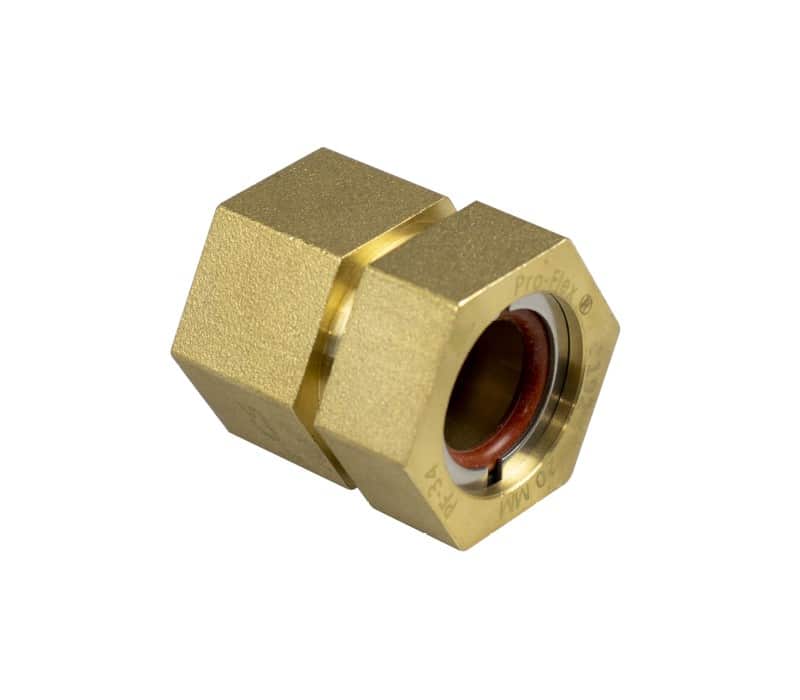

Proflex Female Fitting
Item Details
APPLICATION
The Pro-FlexTM Female Fitting provides a transition between Pro-Flex tubing
[Pro-Flex yellow CSST or FlakJacket Arc-Resistant CSST] and MIP pipe
connections. All Pro-Flex Male Fittings have inner threads [FIP] that are the
same size as the nominal pipe size.
INSTALLATION
Product installation and system testing shall be completed by a
qualified installer in accordance with NFPA 54/ANSI Z223.1
(National Fuel Gas Code), National Gas & Propane Installation Code
B149.1 (Canada), state/local codes and the Pro-Flex Installation/
Training Guide.
MATERIALS
FITTING & NUT: 360 Brass
O-RING: Silicone Rubber
RETAINER & SLIDE RINGS: ASTM A240/A240M 304 Stainless Steel
HIGH TEMP GASKET: Non-asbestos proprietary material
SPECIFICATIONS
APROVED GASES: Natural Gas and LP [Propane] Gas
TEMPERATURE RATING: -20⁰ F/ -28.9⁰ C—200⁰ F/ 93.3⁰ C
MAX WORKING PRESSURE: 25 PSIG
MAX TEST PRESSURES:
| Nominal Diameter | Maximum Test Pressure |
| 1/2" | 150 PSI |
| 3/4" | 150 PSI |
| 1" | 125 PSI |
| 1 1/4" | 100 PSI |
CODES, STANDARDS & LISTINGS:
Codes: NFPA 54, ICC Codes [IFGC, IRC, IPC, IMC], UPC, CAN/CSA B149.1
Standards: ANSI LC1• CSA 6.26
Listings: CSA Master Contract 1174673, IAPMO File # 3669
