Schneider Square D™ Homeline™ Miniature Circuit Breakers

Schneider Electric

SKU: 10311363

+ -

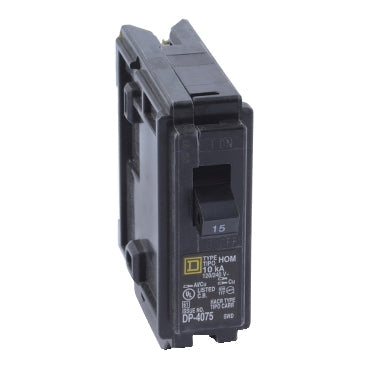

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is consumer packaged.

Product Miniature circuit-breaker
Range Homeline
Current Rating 15 A
Certifications UL Listed
Voltage Rating 120/240 V AC
Mounting Type Plug-in
Number of Poles 1P
Short Circuit Current Rating 10 kA
Number of Spaces 1
