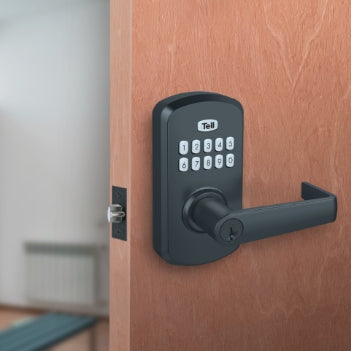

Tell Manufacturing Electronic Keypad Lock LE2000

Tell's LE2000 is a simple and secure electronic keypad door lock for a variety of commercial applications. This Grade 2 lever is ideal for offices, retail spaces, modular buildings, temporary construction access, public restrooms, storage closets and more.

Featuring SmartKey Security™ with an SC1-Keyway cylinder. You can rekey your masterkey right on the spot.

• Performance

  Grade 2 commercial lever

  Metal design for enhanced durability

  Lock can be programmed from the outside with a programming code


  No hard wiring needed

• Functions

  Keyed entry push button electronic lever


• Backset

  Adjustable 2-3/8" or 2-3/4"

• Door Preparation

  2-1/8" diameter face hole

  1" diameter latch hole

• Door Thickness

  1-3/8" – 1-3/4"

  2" kit option available, please call

• Strike

  F Strike square corner

  F Strike 1/8" round corner

  ASA Strike CL102914, available upon request

  T Strike CL102908, available upon request


• Latch

  6-way adjustable latch

  Square latch 2-3/8" or 2-3/4" backset

  Round latch 2-3/8" or 2-3/4" backset

  Drive-in collar 2-3/8" or 2-3/4" backset

• Keypad / Codes

  Up to 30 unique user access codes

  One-time user codes available for emergencies

  Property managers can program the lock from the outside with a programming code

  Operates on a single 9-volt battery

  Up to 3 year battery life

• Handing

  Reversible lever for left-hand or right-hand doors

• Cylinder

  SmartKey Security™

  SCI Keyway


  Not compatible with Kwikset keys.

• Finishes

  US26D Satin Chrome - CL103930

  US19 Matte Black - CL103931

• Compliance

  BHMA commercial grade 2 certified

  ADA Certified

  UL Rating 20 minute

• Warranty

  Limited lifetime on parts and me
